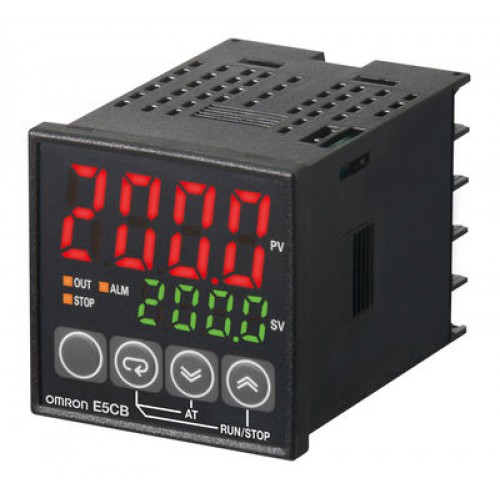

Контроллер температуры E5CB

Power supply voltage

100 to 240 VAC 50/60 Hz, 24 VAC 50/60 Hz, or 24 VDC

Operating voltage range

85% to 110% of rated supply voltage

Power consumption

Approx. 3.5 VA (100 to 240 VAC)
Approx. 3.5 VA (24 VAC)
Approx. 2.5 W (24 VDC)

Sensor input

Models with thermocouple inputs

Thermocouple: K, J, T, R, or S (JIS C 1602-1995, IEC60584-1)

Models with platinum resistance thermometer inputs

Platinum resistance thermometer: Pt100 (JIS C 1604-1997, IEC60751)

Control output

SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations,
minimum applicable load: 5 V, 10 mA

Output voltage: 12 VDC +25%/−15% (PNP), max. load current: 21 mA, with short-circuit protection circuit

Alarm output

SPST-NO, 250 VAC, 1 A (resistive load), electrical life: 100,000 operations, minimum load: 5 V, 10 mA

Control method

ON/OFF control or 2-PID control (with auto-tuning)

Setting method

Digital setting using front panel keys

Indication method

7-segment digital display and individual indicators

Character height: 16.2 mm (PV)

Other functions

Temperature input shift, run/stop, protection functions, etc.

Ambient operating
temperature

−10 to 55°C (with no condensation or icing)/With a three-year guarantee: −10 to 50°C

Ambient operating humidity

25% to 85%

Storage temperature

−25 to 65°C (with no condensation or icing)

Size in mm (H × W × D)

48×48×65
