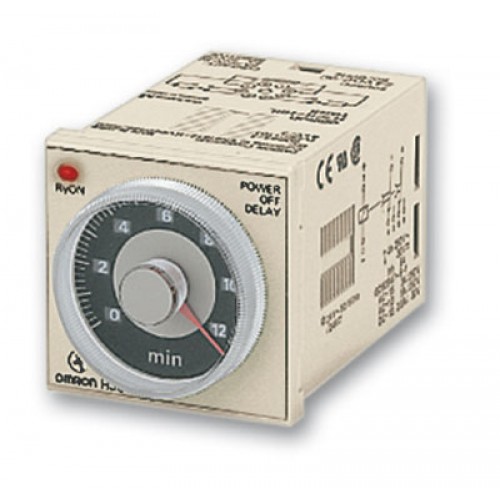

Таймер H3CR
Серия многофункциональных таймеров в корпусе
48 x 48 мм (DIN)
В тщательно
продуманный ассортимент предлагаемых полупроводниковых таймеров включены
многофункциональный таймер, сдвоенный таймер, таймер переключения
звезда/треугольник и таймер задержки выключения питания
- Передняя
панель 48 x 48 мм; втычной
- Высоковольтные/низковольтные
модели (кроме -H и -G)
- От
0,05 с до 300 ч (кроме -H и -G)
- DPDT,
5 A при 250 В~
- Транзистор
100 мА, 30 В=
| Основная информация |
| HTMLATR |
Output | Number of pins | Supply voltage | Time range | Operating mode | Order code |
|---|
Relay DPDT | 11 | 100 to 240 VAC/100 to 125 VDC | 0.05 s to 300 h | ON-delay, flicker OFF start, flicker ON start, signal ON/OFF-delay, signal OFF-delay, interval | H3CR-A 100-240AC/100-125DC | 24 to 48 VAC/12 to 48 VDC | H3CR-A 24-48AC/12-48DC | Transistor | 24 to 48 VAC/12 to 48 VDC | 0.05 s to 300 h | H3CR-AS 24-48AC/12-48DC | Relay DPDT | 8 | 100 to 240 VAC/100 to 125 VDC | 0.05 s to 300 h | ON-delay, flicker ON start,
interval, one-shot | H3CR-A8 100-240AC/100-125DC | 24 to 48 VAC/12 to 48 VDC | H3CR-A8 24-48AC/12-48DC | Transistor | 24 to 48 VAC/12 to 48 VDC | 0.05 s to 300 h | H3CR-A8S 24-48AC/12-48DC | Relay SPDT | 100 to 240 VAC/100 to 125 VDC | H3CR-A8E 100-240AC/100-125DC | 24 to 48 VAC/VDC | H3CR-A8E 24-48AC/DC | Relay DPDT | 11 | 100 to 240 VAC | 0.05 s to 30 h | Flicker OFF start | H3CR-F 100-240AC/100-125DC | 24 VAC/VDC | H3CR-F 24-48AC/12-48DC | 8 | 100 to 240 VAC | H3CR-F8 100-240AC/100-125DC | 24 VAC/VDC | H3CR-F8 24-48AC/12-48DC | 11 | 100 to 240 VAC | 0.05 s to 30 h | Flicker ON start | H3CR-FN 100-240AC/100-125DC | 24 VAC/VDC | H3CR-FN 24-48AC/12-48DC | 8 | 100 to 240 VAC | H3CR-F8N 100-240AC/100-125DC | 24 VAC/VDC | H3CR-F8N 24-48AC/12-48DC | Time-limit contact and instantaneous contact | 100 to 120 VAC | Star-delta | H3CR-G8EL 100-120AC | 200 to 240 VAC | H3CR-G8EL 200-240AC | DPDT | 8 | 100 to 120 VAC | 0.05 to 12 s | Power OFF-delay | H3CR-H8LS 100-120AC | 200 to 240 VAC | H3CR-H8LS 200-240AC | 24 VAC/VDC | H3CR-H8LS 24AC/DC | 100 to 120 VAC | 0.05 to 12 m | H3CR-H8LM 100-120AC | 200 to 240 VAC | H3CR-H8LM 200-240AC | 24 VAC/VDC | H3CR-H8LM 24AC/DC |
|
| HTMLATR1 |
Accuracy of operating time | ±0.2% FS max. (±0.2% ±10 ms max. in a range of 1.2 s) | Influence of voltage | ±0.2% FS max. (±0.2% ±10 ms max. in a range of 1.2 s) | Influence of temperature | ±1% FS max. (±1% ±10 ms max. in a range of 1.2 s) | Ambient temperature | Operating: −10 to 55°C (with no icing),
storage: −25 to 65°C (with no icing) | Life expectancy | Mechanical | 20,000,000 operations min. (under no load at 1,800 operations/h) | Electrical | 100,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h) | Size in mm (H×W×D) | 48×48×66.6 (H3CR-A, -F), 48×48×78 (H3CR-G, -H) | Setting error | ±5% FS ±50 ms | Degree of protection | IP40 (panel surface) | Weight | Approx. 90 g |
|
