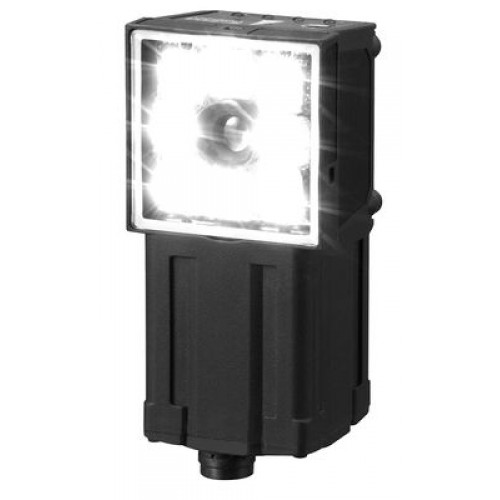

Item | Multi Code Reader |
---|
Model | NPN | FQ-CR10 ⬜⬜⬜⬜ -M |
---|
PNP | FQ-CR15 ⬜⬜⬜⬜ -M |
---|
Field of view | (Tolerance (field of vision): ± 10% max.) |
Installation distance |
Main functions | Inspection items | 2D Code (Data Matrix(EC200), QR Code, MicroQR Code, PDF417, MicroPDF417, GS1-Data Matrix) |
Bar Code (JAN/EAN/UPC, Code39, Codabar (NW-7), ITF (Interleaved 2 of 5), Code 93, Code128/GS1-128, GS1 DataBar* (Truncated, Stacked, Omnidirectional, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked), Pharmacode, GS1-128 Composite Code (CC-A, CC-B, CC-C) |
Image filter | None |
Verification function | Supported |
Retry function | Normal retry, Exposure retry, Scene retry, Trigger retry |
Number of simultaneous measurements | 32 |
Position compensation | None |
Number of registered scenes | 32 |
Image input | Image processing method | Monochrome |
Image filter | High dynamic range (HDR) and polarizing filter (attachment) |
Image elements | 1/3-inch Monochrome CMOS |
Shutter | 1/250 to 1/30,000 |
Processing resolution | 752 × 480 |
Partial input function | Supported horizontally only. |
Lighting | Lighting method | Pulse |
Lighting color | White |
Data logging | Measurement data | In Sensor: 1,000 items (If a Touch Finder is used, results can be saved up to the capacity of an SD card.) |
Images | In Sensor: 20 images (If a Touch Finder is used, images can be saved up to the capacity of an SD card.) |
Auxiliary function | Math (arithmetic, calculation functions, trigonometric functions, and logic functions) |
Measurement trigger | External trigger (single or continuous) |
I/O specifications | Input signals | 7 signals Single measurement input (TRIG) Control command input (IN0 to IN5) |
Output signals | 3 signals Control output (BUSY) Overall judgement output (OR) Error output (ERROR) Note: The three output signals can be allocated for the judgements of individual inspection items. |
Ethernet specifications | 100Base-TX/10Base-T |
Communications | − |
I/O expansion | − |
RS-232C | − |
Ratings | Power supply voltage | 21.6 to 26.4 VDC (including ripple) |
Current consumption | 2.4 A max. |
Environmental immunity | Ambient temperature range | Operating: 0 to 50ºC, Storage: −25 to 65ºC (with no icing or condensation) |
Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) |
Ambient atmosphere | No corrosive gas |
Vibration resistance (destruction) | 10 to 150 Hz, single amplitude: 0.35 mm, X/Y/Z directions 8 min each, 10 times |
Shock resistance (destruction) | 150 m/s2 3 times each in 6 direction (up, down, right, left, forward, and backward) |
Degree of protection | IEC 60529 IP67 (Except when Polarizing Filter Attachment is mounted or connector cap is removed.) |
Materials | Sensor: PBT, PC, SUS, Mounting Bracket: PBT, Polarizing Filter Attachment: PBT, PC Ethernet connector: Oil-resistance vinyl compound, I/O connector: Lead-free heat-resistant PVC |
Weight | Narrow View/Standard View: Approx.160 g Wide View: Approx. 150 g |
Accessories included with sensor | Mounting Bracket (FQ-XL)(1), Polarizing Filter Attachment (FQ-XF1) (1), Instruction Manual, Quick Startup Guide, Member Registration Sheet, Warning Label |
LED class | Class 2(Applicable standards: IEC 60825-1:1993 +A1:1997 +A2:2001,EN 60825-1:1994 +A1:2002 +A2:2001, and JIS C 6802:2005) |
Applicable standards | EN 61326-1:2006 and IEC61010-1 |
