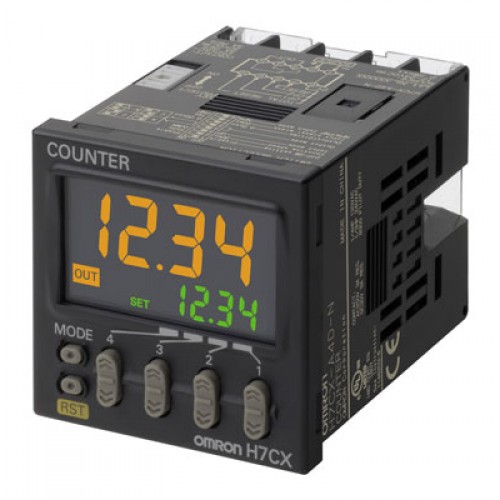

Счетчик H7CX
Стандартный цифровой счетчик с наибольшим
набором функций на рынке
H7CX является
сегодня самой полнофункциональной серией счетчиков на рынке. В результате
обширных исследований потребительского спроса были созданы новые счетчики с
рядом дополнительных возможностей, так необходимых пользователям.
- Высота
48 x Ширина 48 x Глубина от 59 до 78 мм
- Три
цвета индикации показаний: красный, зеленый и оранжевый
- Режим
сдвоенного счетчика
- 6-разрядная
модель: от -99999 до 999999; установка: от -99999 до 999999
- Вход:
n-p-n или p-n-p транзистор или контактный
Основная информация |
HTMLATR |
Type | External connection | Sensor power supply | Supply voltage | Output type | Digits | Size in mm (H×W×D) | Order code |
---|
1-stage counter 1-stage counter with total counter 2-stage counter 1-stage counter with batch counter Dual counter (addition/subtraction) Tachometer Twin counter | Screw terminal | 12 VDC | 100 to 240 VAC | Contact and transistor output | 6 | 48×48×84 | H7CX-AU-N | 12 to 24 VDC/24 VAC | H7CX-AUD1-N | Transistor output (2×) | H7CX-AUSD1-N | 100 to 240 VAC | Contact output (2×) | H7CX-AW-N | 12 to 24 VDC/24 VAC | H7CX-AWD1-N | 1-stage counter 1-stage counter with total counter | 11-pin socket | 12 VDC | 100 to 240 VAC | Contact output | 48×48×69.7 | H7CX-A11-N | 12 to 24 VDC/24 VAC | H7CX-A11D1-N | 12 to 24 VDC/24 VAC | Transistor output | H7CX-A11SD1-N | Screw terminal | 100 to 240 VAC | Contact output | 48×48×84 | H7CX-A-N | 100 to 240 VAC | Transistor output | H7CX-AS-N
|
|
HTMLATR1 |
Display | 7-segment, negative transmissive LCD | Digits | 6-digits: −99,999 to 999,999, SV range: −99999 to 999999 or 0 to 999999 | Max. counting speed | 30 Hz or 5 kHz (selectable, ON/OFF ratio 1:1) | Input modes | Increment, decrement, increment/decrement (UP/DOWN A (command input), UP/DOWN B (individual inputs), or UP/DOWN C (quadrature inputs)) | Control output | Contact output: 3 A at 250 VAC/30 VDC, resistive load (cosφ = 1) Minimum applied load: 10 mA at 5 VDC Transistor output: NPN open collector, 100 mA at 30 VDC Residual voltage: 1.5 VDC max. (approx. 1V) Leakage current: 0.1 mA max. | Key protection | Yes | Decimal point adjustment | Yes (rightmost 3 digits) | Sensor waiting time | 290 ms max. | Memory backup | EEPROM (overwrites: 100,000 times min.) stores data 10 years min. | Ambient temperature | Operating: −10 to 55°C (−10 to 50°C when mounted side by side) | Case color | Black (N1.5) (Optional Front Panels are available to change the Front Panel color to light gray or white.) | Life expectancy | Mechanical: 10,000,000 operations min. | Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load) | Degree of protection | Panel surface: IP66, NEMA 4 (indoors), and UL Type 4X (indoors) |
|
