Фотоэлектрический датчик E3ZM
- Фотоэлектрический датчик : E3ZM
Связаться с отделом продаж
+7 /727/ 349 3494
Отправить заявку

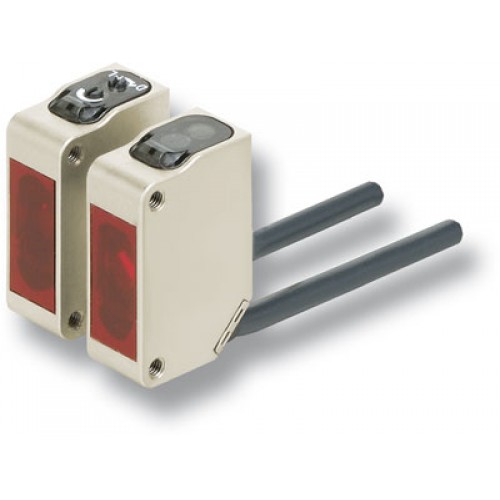

Компактный фотоэлектрический датчик в прочном
корпусе из нержавеющей стали
Компактный
прочный корпус из нержавеющей стали, устойчивый к детергентам, и мощный
светодиод обеспечивают превосходное сочетание функциональности и компактности
для задач с повышенными требованиями.
- Устойчивый
к детергентам корпус из нержавеющей стали
- IP67
и IP69k для повышенной водостойкости
- Стойкость
к моющим средствам проверена и сертифицирована ECOLAB
Основная информация |
HTMLATR |
Sensor type | Sensing distance | Connection method | Order code |
---|
| | | | NPN output | PNP output |
---|
Through-beam | 15 m | - | - | 2 m |
| E3ZM-T61 2M | E3ZM-T81 2M | ¢ | - | - | E3ZM-T66 | E3ZM-T86 | 0.8 m with built-in slit | - | - | 2 m | E3ZM-T63 2M | E3ZM-T83 2M | ¢ | - | - | E3ZM-T68 | E3ZM-T88 | Retro-reflective with M.S.R. | 0.1 to 4 m | - | - | 2 m | E3ZM-R61 2M | E3ZM-R81 2M | ¢ | - | - | E3ZM-R66 | E3ZM-R86 | Diffuse-reflective | 1 m (adjustable) | - | - | 2 m | E3ZM-D62 2M | E3ZM-D82 2M | ¢ | - | - | E3ZM-D67 | E3ZM-D87 | Diffuse-reflective (background suppression) | 10 to 100 mm (fixed) | - | - | 2 m | E3ZM-LS61X 2M | E3ZM-LS81X 2M | ¢ | - | - | E3ZM-LS66X | E3ZM-LS86X | 10 to 200 mm (fixed) | - | - | 2 m | E3ZM-LS64X 2M | E3ZM-LS84X 2M | ¢ | - | - | E3ZM-LS69X | E3ZM-LS89X |
|
HTMLATR1 |
Item | Through-beam | Retro-reflective with M.S.R. | Diffuse-reflective |
---|
|
| NPN | E3ZM-T61 E3ZM-T66 | E3ZM-T63 E3ZM-T68 | E3ZM-R61 E3ZM-R66 | E3ZM-D62 E3ZM-D67 |
---|
PNP | E3ZM-T81 E3ZM-T86 | E3ZM-T83 E3ZM-T88 | E3ZM-R81 E3ZM-R86 | E3ZM-D82 E3ZM-D87 |
---|
Light source (wave length) | Infrared LED (870 nm) | Red LED (660 nm) | Infrared LED (860 nm) | Power supply voltage | 10 to 30 VDC, ±10% ripple (p-p) | Protective circuits | Power supply reverse polarity protection, output short-circuit protection, output reverse polarity protection | Power supply reverse polarity protection, output short-circuit protection, mutual interference prevention, output reverse polarity protection | Response time | 1 ms max. | Ambient temperature | Operating | -25 to 55°C | Storage | -40 to 70°C (with no icing or condensation) | Degree of protection | IEC 60529 IP67, IP69K after DIN 40050 part 9 | Material | Case | SUS316L | Lens | Methacrylic resin | Display | PES (polyether sulfone) | Sensitivity adjustment and operation switch | PEEK (polyether ether ketone) | Seals | Fluoro rubber |
|
