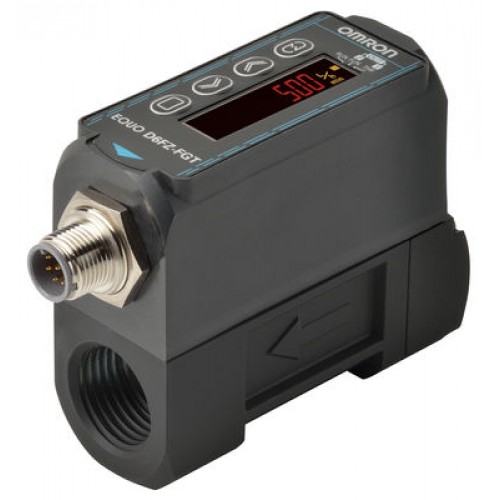

Устройство контроля мощности D6FZ-FGT
- Устройство контроля мощности : D6FZ-FGT
Связаться с отделом продаж
+7 /727/ 349 3494
Отправить заявку
Определяет утечки сжатого воздуха на машинном
уровне
Датчики сжатого воздуха серии D6FZ-FGT200/500 позволяют
производить измерения в случае когда машина потребляет излишнее количество
энергии.
- Высокоточные
измерения расхода электроэнергии
- Определение
утечек и измерение количества потребляемой энергии с помощью одного
прибора
- 1
аналоговый и 2 импульсных выхода
- Интерфейс
RS485
- Высокая
степень защита: IP65 (-FGT200/500)
- Может
быть установлен на изгиб трубопровода
- LCD-дисплей
- Пороговое
значение (пиковое/минимальное/утечка)
- Автонастройка
определения утечки благодаря нашему алгоритму Dual Gain
| Основная информация |
| HTMLATR |
Appearance | Product name | Order code |
|---|
| Air flow sensor (200L type) | D6FZ-FGT200 | | Air flow sensor (500L type) | D6FZ-FGT500 | | Air flow sensor (1000L type, cable length: 0.2 m) | D6FZ-FGS1000 | | Air flow station (Cable length 1.5 m, including T-branch connector cable) | D6FZ-FGX21 | | Air flow sensor set (1000L type) Air flow sensor (1000L type) Air flow station T-branch connector Single-end wire cable (3 m) | D6FZ-FGS1000-S |
|
| HTMLATR1 |
Appearance | Product name | Order code |
|---|
| T-branch connector | D6FZ-FC02 | | (Air flow sensor D6FZ-FGT only) Mounting bracket Mounting bracket: 1 Plus screw (M3): 4 | D6FZ-FC03 | | (Air flow station D6FZ-FGX21 only) Mounting magnet Mounting magnet: 2 Plus screw (M3): 2 | ZN9-EM01-S | | Single-end wire cable | Cable length 3 m | M12 connector (8 pin) | D6FZ-JD3A | Cable length 10 m | D6FZ-JD10A | Cable length 20 m | D6FZ-JD20A | | Double-end connector cable | Cable length 3 m | M12 connector (8 pin) | D6FZ-JD3B | Cable length 5 m | D6FZ-JD5B | Cable length 10 m | D6FZ-JD10B | Cable length 20 m | D6FZ-JD20B |
|
| HTMLATR2 |
Item | | Model | D6FZ-FGT200 | D6FZ-FGT500 |
|---|
Applicable fluid | Air, nitrogen (N2) | Working pressure | 0.75 MPa (withstands pressure of 1.5MPa) | Measurement range | 0 to 200 L/min | 0 to 500 L/min | Accuracy | ±2.0%F.S. at 50 L/min or more | ±0.5%F.S. at less than 50 L/min | Pressure loss | 2 kPa max. | 4 kPa max. | Power supply voltage | 12 to 24 VDC ±10% ripple (p-p) 10% max. | Current consumption | 120 mA max. | Functions | Momentary flow/integrated flow/reversing display/zero point adjustment/peak and bottom hold/key lock/eco model/scaling (analog output)/judgement hysteresis/teaching | Output | Output interface | Analog | Current output 4 to 20 mA (1 contact), maximum load resistance 300 Ω max. | ON/OFF | Open collector output (2 outputs) 26.4 VDC 50 mA max. ON residual voltage 2 V max. (Outputs can be selected from judgement output, pulse output and unit error output) | RS-485 | 2-wire half duplex communication, start-stop synchronized method Baud rate: 9.6k/19.2k/38.4k/115.2kbps, data bit length: 7/8bit, stop bit length: 1/2bit, parity: none/even/odd, termination resister (120 Ω ): ON/OFF, communications protocol: compatible with CompoWay/F | Output values | Momentary flow, integrated flow, judgement output, unit error output | Connection bore diameter | Rc1/4 (8 A) | Rc1/2 (15 A) | Dimensions | 30(W) × 77(D) × 63.7(H) mm | Weight (when packaged) | Approx. 400 g (500 g) |
|
