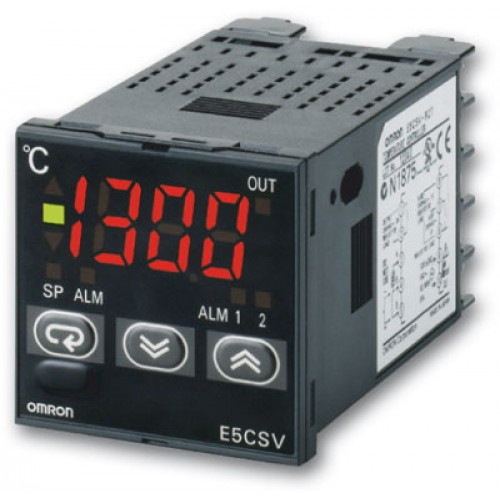

Контроллер температуры E5CSV

Supply voltage

100 to 240 VAC, 50/60 Hz or 24 VAC/VDC (depending on model)

Operating voltage range

85 to 110% of rated supply voltage

Power consumption

5 VA

Sensor input

Multi-input (thermocouple/platinum resistance thermometer): K, J, L, T, U, N, R, Pt100, JPt100

Control output

Relay output

SPST-NO, 250 VAC, 3 A (resistive load)

Voltage output (for driving SSR)

12 VDC, 21 mA (with short-circuit protection circuit)

Control method

ON/OFF or 2-PID (with auto-tune and self-tune)

Alarm output

SPST-NO, 250 VAC, 1 A (resistive load)

Setting method

Digital setting using front panel keys (functionality set-up with DIP switch)

Indication

7-segment digital display (character height: 13.5 mm) and deviation indicators

Ambient temperature

-10 to 55°C (with no condensation or icing)

Setting/indication accuracy

±0.5% of indication value or ±1 °C, whichever is greater ±1 digit max.

Hysteresis (for ON/OFF control)

0.2% FS (0.1% FS for multi-input (thermocouple/platinum resistance thermometer) models)

Proportional band (P)

1 to 999°C (automatic adjustment using AT/ST)

Integral time (I)

0 to 1,999 s (automatic adjustment using AT/ST)

Derivative time (D)

0 to 1,999 s (automatic adjustment using AT/ST)

Control period

2/20 s

Sampling period

500 ms

Electrical life expectancy

100,000 operations min. (relay output models)

Weight

Approx. 120 g (controller only)

Degree of protection

Front panel: Equivalent to IP66; rear case: IP20; terminals: IP00

Memory protection

EEPROM (non-volatile memory) (number of writes: 1,000,000)

Size in mm (H×W×D)

48×48×78

1/16 DIN
48H×48W×78D

100 to 240 VAC

1

Relay

E5CSV-R1T-500

Voltage (for driving SSR)

E5CSV-Q1T-500

24 VAC/VDC

1

Relay

E5CSV-R1TD-500

Voltage (for driving SSR)

E5CSV-Q1TD-500
