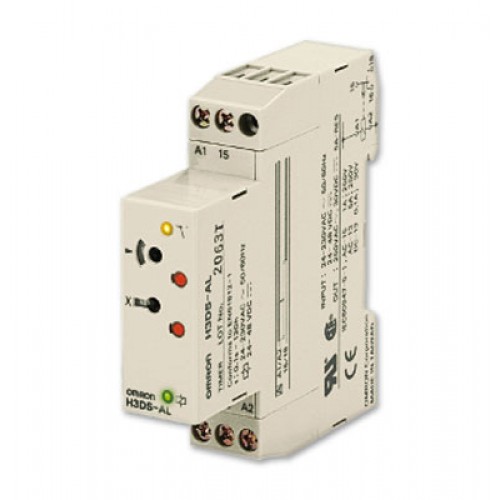

Таймер H3DS
Линейка полупроводниковых таймеров
стандартной ширины 17,5 мм для монтажа на DIN-рейку
Таймеры этого
многочисленного семейства способны выполнять множество функций и работают в
широком диапазоне переменных/постоянных напряжений питания. Имеются модели с
безвинтовыми клеммами
- Ширина
17,5 мм (модульная модель - 45 мм)
- Монтаж
на DIN-рейку
- 24...48
В= и 24...230 В~
- 7
переключаемых диапазонов времени: от 0.1 с до 120 ч
| Основная информация |
| HTMLATR |
Type | Supply voltage | Control output | Time setting range | Operating modes | Order code |
|---|
Screw
terminal type | Screw-less
clamp type |
|---|
Multi-functional timer | 24 to 230 VAC
(50/60 Hz)/
24 to 48 VDC | SPDT | 0.1 s to120 h | ON-delay, flicker OFF start, flicker ON start,
signal ON/OFF-delay, signal OFF-delay,
interval, one-shot | H3DS-ML | H3DS-MLC | Standard timer | ON-delay, flicker ON start, interval, oneshot | H3DS-SL | H3DS-SLC | Single function timer | ON-delay | H3DS-AL | H3DS-ALC | Twin timer | Relay SPDT | 0.1 s to 12 h | Flicker OFF start, flicker ON start | H3DS-FL | H3DS-FLC | Star-delta timer | 2× Relay SPST-NO | 1 s to 120 s | Star-delta | H3DS-GL | H3DS-GLC | Two-wired timer | 24 to 230 VAC/VDC
(50/60 Hz) | SCR output | 0.1 s to 120 h | ON-delay | H3DS-XL | H3DS-XLC
|
|
| HTMLATR1 |
Terminal block | Screw terminal type: Clamps two 2.5 mm2 max. bar terminals without sleeves Screw-less clamp type: Clamps two 1.5 mm2 max. bar terminals without sleeves | Mounting method | DIN-rail mounting | Operating voltage range | 85 to 110% of rated supply voltage | Power reset | Minimum power-off time: 0.1 s, 0.5 s for H3DS-G | Reset voltage | 2.4 VAC/VDC max., 1.0 VAC/VDC max. for H3DS-X | Voltage input | Max. permissible capacitance between input lines (terminals B1 and A2): 2,000 pF | Load connectable in parallel with inputs (terminals B1 and A1) | H-level: 20.4 to 253 VAC/20.4 to 52.8 VDC | L-level: 0 to 2.4 VAC/VDC | Control output | Contact output: 5 A at 250 VAC with resistive load (cosφ = 1) | 5 A at 30 VDC with resistive load (cosφ = 1) | Ambient temperature | Operating: -10 to 55°C (with no icing) | Storage: -25 to 65°C (with no icing) | Accuracy of operating time | ±1% max. of FS (±1% ±10 ms max. at 1.2 s range) | Setting error | ±10% ±50 ms max. of FS | Influence of voltage | ±0.7% max. of FS (±0.7% ±10 ms max. at 1.2 s range) | Influence of temperature | ±5% max. of FS (±5% ±10 ms max. at 1.2 s range) | Life expectancy (not H3DS-X) | Mechanical: 10 million operations min. (under no load at 1,800 operations/h) | Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 360 operations/h) | Size in mm(HxWxD) | 80x17.5x73 |
|
