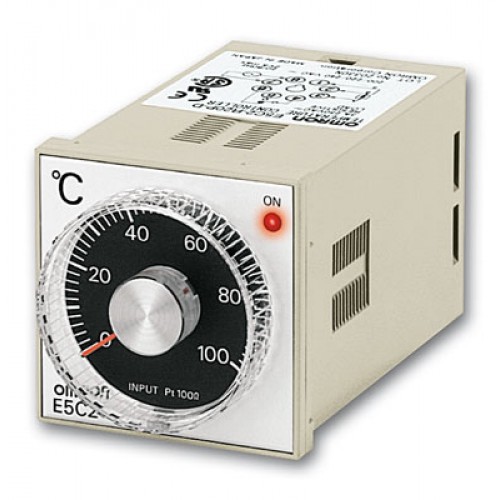

Контроллер температуры E5C2

Input/ standard scale (°C)

Thermocouple

K (CA) Chromel vs. Alumel

0 to 200 °C

E5C2-R20K AC100-240 0-200

E5C2-R40K AC100-240 0-200

0 to 300 °C

-

E5C2-R40K AC100-240 0-300

0 to 400 °C

E5C2-R20K AC100-240 0-400

E5C2-R40K AC100-240 0-400

0 to 600 °C

E5C2-R20K AC100-240 0-600

E5C2-R40K AC100-240 0-600

0 to 800 °C

E5C2-R20K AC100-240 0-800

E5C2-R40K AC100-240 0-800

0 to 1000 °C

E5C2-R20K AC100-240 0-1000

-

0 to 1200 °C

E5C2-R20K AC100-240 0-1200

-

J (IC) Iron versus Constantan

0 to 200 °C

E5C2-R20J AC100-240 0-200

-

0 to 300 °C

E5C2-R20J AC100-240 0-300

-

0 to 400 °C

E5C2-R20J AC100-240 0-400

-

Resistance thermometer

Platinum resistance thermometer

-50 to 50 °C

E5C2-R20P-D AC100-240 -50-50

-

0 to 50 °C

E5C2-R20P-D AC100-240 0-50

-

0 to 100 °C

E5C2-R20P-D AC100-240 0-100

-

0 to 200 °C

E5C2-R20P-D AC100-240 0-200

-

0 to 300 °C

E5C2-R20P-D AC100-240 0-300

-

0 to 400 °C

E5C2-R20P-D AC100-240 0-400

-

Thermistor

THE (replaceable element)

0 to 100 °C

E5C2-R20G AC100-240 0-100

-

100 to 200 °C

E5C2-R20G AC100-240 100-200

-

150 to 300 °C

E5C2-R20G AC100-240 150-300

-

Front connecting socket with finger protection

P2CF-08-E

Back connecting socket (for flush mounting)

P3G-08

Finger protection cover (for P3G-08)

Y92A-48G

Protective front cover (IP66)

Y92A-48B
