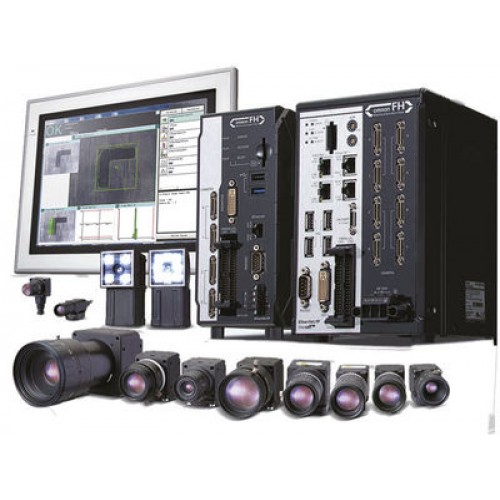

Зорче человеческого глаза
- Исчерпывающий
ассортимент камер для различных применений
- Высокопроизводительные
контроллеры для быстрой и точной технической инспекции и измерений
- Программное
обеспечение для удобной настройки различных измерений
| Основная информация |
| HTMLATR |
Item | CPU | No. of cameras | Output | Order code |
|---|
| Box-type controllers | High-speed controllers (4 core) | 2 | NPN/PNP | FH-3050 | 4 | NPN/PNP | FH-3050-10 | 8 | NPN/PNP | FH-3050-20 | Standard controllers (2 core) | 2 | NPN/PNP | FH-1050 | 4 | NPN/PNP | FH-1050-10 | 8 | NPN/PNP | FH-1050-20 | | Box-type controllers | Lite controllers (2 core) | 2 | NPN/PNP | FH-L550 | 4 | NPN/PNP | FH-L550-10 |
|
| HTMLATR1 |
Item | Descriptions | Order code |
|---|
| Camera cable Cable length: 2 m, 3 m, 5 m, or 10 m | FZ-VS3 _M |
| Bend resistant Camera cable Cable length: 2 m, 3 m, 5 m, or 10 m | FZ-VSB3 _M |
| Right-angle Camera cable *1 Cable length: 2 m, 3 m, 5 m, or 10 m | FZ-VSL3 _M |
| Bend resistant Right-angle Camera cable Cable length: 2 m, 3 m, 5 m, or 10 m | FZ-VSLB3 _M |
| Long-distance Camera cable Cable length: 15 m | FZ-VS4 15M |
| Long-distance Right-angle Camera cable Cable length: 15 m | FZ-VSL4 15M |
| Cable Extension Unit Up to two Extension Units and three cables can be connected. (Maximum cable length: 45 m ) | FZ-VSJ |
|
| HTMLATR2 |
Item | Model | Transmission speed | No. of CH used for connection | Maximum cable length
using 1 camera cable | Max. number of connectable extension units | Using cable extension units FZ-VSJ |
|---|
Max. cable length | Connection
configuration |
|---|
High-speed
Digital CMOS cameras | FH-SM/SC | - | - | 15 m (Using FZ-VS4/VSL4) | 2 | 45 m | [Configuration 1] Camera cable: 15 m × 3 Extension unit: 2 | FH-SM02/SC02 FH-SM04/SC04 FH-SM12/SC12 | Standard | 1 | 15 m (Using FZ-VS4/VSL4) | 2 | 45 m | [Configuration 1] Camera cable: 15 m × 3 Extension unit: 2 | 2 | 15 m (Using FZ-VS4/VSL4) | 4 | 45 m | [Configuration 2] Camera cable: 15 m × 6 Extension unit: 4 | High speed | 1 | 5 m (Using FZ-VS_/VSL_) | 2 | 15 m | [Configuration 3] Camera cable: 5 m × 3 Extension unit: 2 | 2 | 5 m (Using FZ-VS_/VSL_) | 4 | 15 m | [Configuration 4] Camera cable: 5 m × 6 Extension unit: 4 | FZ-S5M3/SC5M3 | - | - | 5 m (Using FZ-VS_/VSL_) | 2 | 15 m | [Configuration 3] Camera cable: 5 m × 3 Extension unit: 2 | Digital
CMOS cameras | FH-SC05R FH-SM05R | - | - | 15m (Using FZ-VS4/VSL4) | 2 | 45 m | [Configuration 1] Camera cable: 15 m × 3 Extension unit: 2 | Digital CCD cameras | FZ-S/SC FZ-S2M/SC2M | - | - | 15 m (Using FZ-VS4/VSL4) | 2 | 45 m | [Configuration 1] Camera cable: 15 m × 3 Extension unit: 2 | Small Digital CCD cameras Flat type/ Pen type | FZ-SF/SFC FZ-SP/SPC | - | - | 15 m (Using FZ-VS4/VSL4) | 2 | 45 m | [Configuration 1] Camera cable: 15 m × 3 Extension unit: 2 | High-speed
Digital CCD cameras | FZ-SH/SHC | - | - | 15 m (Using FZ-VS4/VSL4) | 2 | 45 m | [Configuration 1] Camera cable: 15 m × 3 Extension unit: 2 | Intelligent Compact Digital
CMOS camera | FZ-SQ_ | - | - | 15 m (Using FZ-VS4/VSL4) | 2 | 45 m | [Configuration 1] Camera cable: 15 m × 3 Extension unit: 2
|
|
