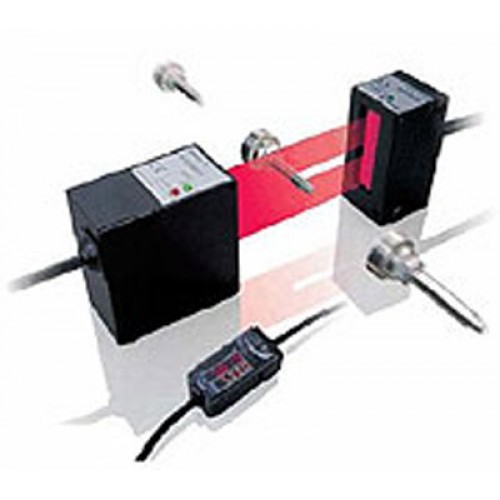

Измерительный датчик ZX-GT

1 m

1 m

ZX-XGC1A

ZX-XGC1R

2 m

ZX-XGC2A

ZX-XGC2R

5 m

ZX-XGC5A

ZX-XGC5R

8 m

ZX-XGC8A

ZX-XGC8R

20 m

ZX-XGC20A

ZX-XGC20R

Output type

NPN

PNP

Appearance

Separate type

Integrated type

Separate type

Integrated type

Light source

Visible semiconductor laser diode (wavelength 650 nm, CLASS 1 of EN60825-1/IEC60825-1, CLASS of FDA(21CFR 1040.10 and 1040.11)

Measuring width

28 mm

Sensing distance

0 to 500 mm

40 mm

0 to 500 mm

40 mm

Minimum sensing object

0.5 mm dia.

0.2 mm dia.

0.5 mm dia.

0.2 mm dia.

Linearity

±0.1% F.S.

Resolution

10 µm (number of process values to average: 16)

Temperature characteristic

±0.01% F.S/C

Indicators (emitter)

Laser ON indicator (green), laser alarm indicator (red)

Indicator (receiver)

Optical axis setting indicator (green)

Laser OFF input/sync input

ON: Short-circuited with 0 V or 1.5 V max.
OFF: Open (leakage current: 0.1 mA max.)

ON: Short-circuited with power supply voltage or
power supply voltage -1.5 V max.
OFF: Open (leakage current: 0.1 mA max.)

Laser deterioration alarm output

NPN open-collector output
30 VDC 20 mA max.
Residual voltage 1.2 V max.

PNP open-collector output
30 VDC 20 mA max.
Residual voltage 2 V max.

Power consumption (emitter)

30 mA max.

Power supply voltage (emitter)

24 VDC+10%, -15% ripple (p-p) 10% max.

Dielectric strength

1,000 VAC, 50/60 Hz for 1 min

Insulation resistance

20 M Ω (at 500 VDC megger)

Operating ambient illumination
(emitter)

3,000 lx (incandescent light)

Operating ambient illumination
(receiver)

1,000 lx (incandescent light)

Ambient temperature

Operating: 0 to 40°C, storage: -15 to 50°C (with no icing or condensation)

Ambient humidity

Operating and storage: 35% to 85% (with no condensation)

Vibration resistance (durability)

10 to 150 Hz single-amplitude: 0.75 mm for 80 min each in X, Y and Z directions

Degree of protection

IEC60529 IP40

Cable length

2 m

Material

Case: aluminum die-cast, Lens: glass

Weight (packed state)

Approx. 550 g

Approx. 570 g

Approx. 550 g

Approx. 570 g

Accessories

Laser warning labels, instruction sheet

Output type

NPN

PNP

Measurement cycle

1.5 ms (standard mode (NORM))
0.5 ms (high-speed mode (FAST))

Samples to average

1/2/4/8/16/32/64/128/256/512/1024/2048/4096

Analog output

For current output: 4 to 20 mA/F.S., max. load resistance 300 Ω
For voltage output: ±4 V, (±5 V, 1 to 5 V

Timing input, bank switching input, zero reset input, reset input

ON: short-circuited with 0 V or 1.5 V max.
OFF: Open (leakage current: 0.1 mA max.)

ON: short-circuited with power supply voltage or
power supply voltage -1.5 V max.
OFF: Open (leakage current: 0.1 mA max.)

HIGH/PASS/LOW
Judgment output

NPN open-collector output
30 VDC 50 mA max.
Residual voltage 1.2 V max.

PNP open-collector output
30 VDC 50 mA max.
Residual voltage 2 V max.

Indicator

Judgment output indicator: HIGH (orange), PASS (green), LOW (orange)
Main display (red) sub-display (yellow) bank 1/2 (orange), zero reset (green)

Main functions

Number of registered
setups

2 banks

Measurement mode

Interrupted beam width measurement, incident beam width measurement, outer diameter measurement, center position measurement, IC lead pitch,
IC lead width judgment, specified edge measurement, wire position measurement, glass edge position measurement

Display during
measurement

Measured value, resolution, threshold, voltage output value, current output value (number of display digits can be changed)

Zero reset functions

Offset setting of zero reset value, zero reset value memory

Hold

Sample hold, peak hold, bottom hold, peak-to-peak hold, average hold, delay hold

Timer functions

ON-delay, OFF-delay, one-shot

Adjustment functions

Optical axis adjust mode/light intensityt writing mode, variable binary level, variable edge filter, analog output scaling

Calculation

2 possible on up to two controllers (calculation Unit ZX-CAL2 is required for connecting controllers to each other.) A-B, A+B, width

Other

Measurement cycle setting, threshold setting, hysteresis setting, initialization, key lock

Temperature characteristic

±0.005% F.S./°C

Current consumption

150 mA max. (including receiver)

Power supply voltage

24 VDC+10%, -15% ripple (p-p) 10% max.

Dielectric strength

1,000 VAC, 50/60 Hz for min

Insulation resistance

20 M Ω (at 500 VDC megger)

Ambient temperature

Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation)

Ambient humidity

Operating and storage: 35% to 85% (with no condensation)

Vibration resistance(durability)

10 to 150 Hz single-amplitude: 0.35 mm for 80 min each in X, Y and Z directions

Degree of protection

IEC60529 IP20

Cable length

2 m

Material

Case: PBT (polybutylene terephthalate), cover: Polycarbonate

Weight (packed state)

Approx. 330 g

Accessories

Instruction sheet
