Sensor controllers | Model | ZS-DSU11 | ZS-DSU41 |
|---|
Number of mounted censor heads | Cannot be connected | Number of connectable controllers | 10 controllers max. (ZS-MDC: 1 controller, ZS-HLDC: 9 controllers max.) | Connectable controllers | ZS-HLDC__, ZS-MDC__ | External
interface | Connection method | Serial I/O: connector, other: pre-wired (standard cable length: 2 m) | Serial I/O | USB 2.0 | 1 port, full speed (12 Mbps), MINI-B | RS-232C | 1 port, 115,200 bps max. | Outputs | 3 outputs: HIGH, PASS, and LOW NPN open-collector, 30 VDC, 50 mA max.,
residual voltage: 1.2 V max. | 3 outputs: HIGH, PASS, and LOW PNP open-collector, 50 mA max.,
residual voltage: 1.2 V max. | Inputs | ON: Short-circuited with 0V terminal or 1.5 V or less OFF: Open (leakage current: 0.1 mA max.) | ON: Short-circuited to supply voltage or within 1.5 V of supply voltage OFF: Open (leakage current: 0.1 mA max.) | Data resolution | 32 bits | Functions | Logging trigger functions | Start and stop triggers can be set separately; external triggers, data triggers (self-triggers), and time triggers | Other functions | External banks, alarm outputs, saved data format customization, and clock | Status indicators | OUT (orange), PWR (green), ACCESS (orange), and ERR (red) | Segment display | 8-segment green LEDs, 6 digits | LCD | 16 digitsx2 rows, color of characters: green, resolution per character: 5x8 pixel matrix | Setting inputs | Setting keys | Direction keys (UP, DOWN, LEFT, and RIGHT), SET key, ESC key, MENU key, and function keys (1 to 4) | Slide switch | Threshold switch (2 states: High/Low), mode switch (3 states: FUN, TEACH, and RUN) | Power supply voltage | 21.6 V to 26.4 VDC (including ripple) | Current consumption | 0.5 A max. | Ambient temperature | Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation) | Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | Materials | Case: Polycarbonate (PC) | Weight | Approx. 280 g (excluding packing materials and accessories) | Accessories | Ferrite core (1) instruction sheet, tools for data storage unit: CSV file converter for data storage unit, smart analyzer macro edition
(Excel macros for analysis of collected data) |
|
| HTMLATR3 |

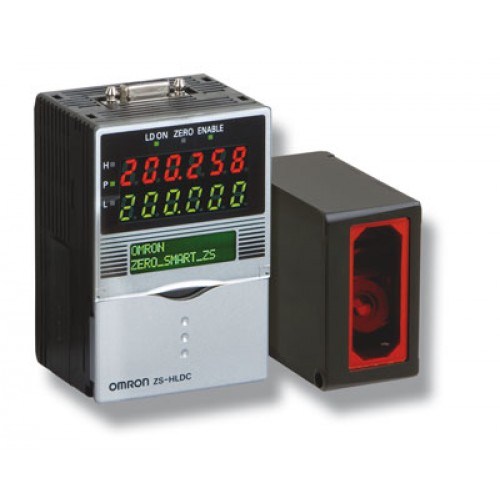

Item | ZS-HLDC11 | ZS-HLDC41 |
|---|
NPN/PNP | NPN | PNP | No. of samples to average | 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1,024, 2,048, or 4,096 | Number of mounted sensors | 1 per sensor controller | External interface | Connection method | Serial I/O: connector, other: pre-wired (standard cable length: 2 m) | Serial I/O | USB 2.0 | 1 port, full speed (12 Mbps max.), MINI-B | RS-232C | 1 port, 115,200 bps. max. | Output | Judgement output | HIGH/PASS/LOW 3 outputs
NPN open collector, 30 VDC, 50 mA max.,
residual voltage 1.2 V max | HIGH/PASS/LOW: 3 outputs PNP open collector, 50 mA max.,
residual voltage 1.2 V max | Linear output | Selectable from 2 types of output, voltage or current (selected by slide switch on bottom).
Voltage output: .10 to 10 V, output impedance: 40 Ω Current output: 4 to 20 mA | Inputs | Laser OFF,
ZERO reset timing,
RESET | ON: Short-circuited with 0 V terminal or 1.5 V or less OFF: Open (leakage current: 0.1 mA max.) | ON: Short-circuited to supply voltage or within 1.5 V of supply voltage. OFF: Open (leakage current: 0.1 mA max.) | Functions | Display: Measured value, threshold value, voltage/current, received light amount, and resolution/terminal block output Sensing: Mode, gain, measurement object, head installation Measurement point: Average, peak, bottom, thickness, step, and calculations Filter: Smooth, average, and differentiation Outputs: Scaling, various hold values, and zero reset I/O settings: Linear (focus/correction), judgments (hysteresis and timer), non-measurement, and bank (switching and clear) System: Save, initialization, measurement information display, communications settings, key lock, language, and data load Task: Single task or multitask (up to 4) | Status indicators | HIGH (orange), PASS (green), LOW (orange), LDON (green), ZERO (green), and ENABLE (green) | Segment display | Main digital | 8-segment red LED, 6 digits | Sub-digital | 8-segment green LEDs, 6 digits | LCD | 16 digitsx2 rows, color of characters: green, resolution per character: 5x8 pixel matrix | Setting inputs | Setting keys | Direction keys (UP, DOWN, LEFT, and RIGHT), SET key, ESC key, MENU key, and function keys (1 to 4) | Slide switch | Threshold switch (2 states: High/Low), mode switch (3 states: FUN, TEACH, and RUN) | Power supply voltage | 21.6 V to 26.4 VDC (including ripple) | Current consumption | 0.5 A max. (when sensor head is connected) | Ambient temperature | Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation) | Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | Degree of protection | IP20 | Materials | Case: Polycarbonate (PC) | Weight | Approx. 280 g (excluding packing materials and accessories) | Accessories | Ferrite core (1), instruction sheet |
|
