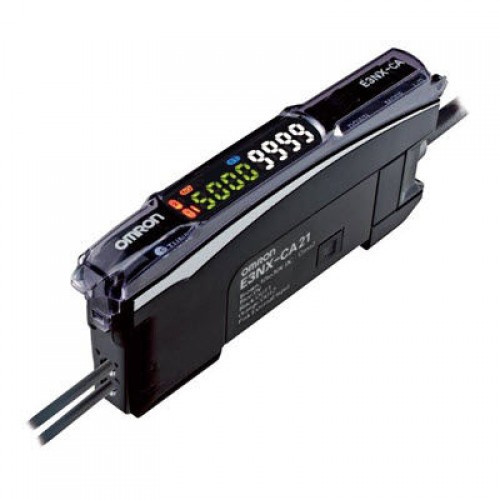

Высокоэффективный датчик цветных меток

Датчик E3NX-CA обеспечивает надежное обнаружение цветных меток в приложениях любого уровня сложности. Измерительная головка устанавливается отдельно от усилительного блока, что позволяет гибко подстраиваться под любые условия монтажа даже в ограниченном пространстве.

  • Способен различать мельчайшие различия в цвете
  • Время реакции 50 мкс в режиме «Контраст»
  • До 8 переключаемых банков памяти
  • Функция передачи данных RGB
  • Интеллектуальная автонастройка — простое обучение всего за несколько секунд.
  • Модуль связи EtherCAT для высокоскоростного обмена данными по промышленным сетям


Основная информация
HTMLATR

Type

Appearance

Connecting method

Inputs/outputs

Order code

NPN output

PNP output

Standard models



Pre-wired (2 m)

1 output

E3NX-CA11 2M

E3NX-CA41 2M



Wire-saving Connector

1 output

E3NX-CA6

E3NX-CA8

Advanced models



Pre-wired (2 m)

2 outputs + 1 input

E3NX-CA21 2M

E3NX-CA51 2M

Model for Sensor Communications Unit



Connector for Sensor Communications Unit

-

E3NX-CA0

HTMLATR1


Item

Type

Standard models

Advanced models

Model for Sensor Communications Unit

NPN output

E3NX-CA11

E3NX-CA6

E3NX-CA21

E3NX-CA0

PNP output

E3NX-CA41

E3NX-CA8

E3NX-CA51

Connecting method

Pre-wired

Wire-saving Connector

Pre-wired

Connector for Sensor Communications Unit

I/O

Outputs

1 output

2 outputs

-

External input

-

1 input

Light source (wavelength)

White LED (420 to 700 nm)

Supply voltage

10 to 30 VDC, including 10% ripple (p-p)

Supplied from the connector through the Sensor Communications Unit.

Power consumption

At Power Supply Voltage of 24 VDC

Normal mode: 960 mW max. (Current consumption: 65 mA max.)

Eco function ON: 720 mW max. (Current consumption: 30 mA max.)

Eco function LO: 800 mW max. (Current consumption: 33 mA max.)

Control output

Load power supply voltage

30 VDC max., open-collector output

-

Load current

Groups of 1 to 3 Amplifiers: 100 mA max.,

Groups of 4 to 30 Amplifiers: 20 mA max.

Residual voltage

At load current of less than 10 mA: 1 V max.

At load current of 10 to 100 mA: 2 V max.

OFF current

0.1 mA max.

Protection circuits

Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection

Power supply reverse polarity protection

Sensing method

Contrast Mode: Light intensity discrimination for RGB (initial state/after 2-point tuning) (R+G+B light intensity discrimination for 1-point tuning)

Color Mode: RGB ratio discrimination

Response time

Super-high-speed Mode (SHS)

Operate or reset: 50 µs (only in Contrast Mode)

High-speed Mode (HS)

Operate or reset: 250 µs

Standard Mode (Stnd)

Operate or reset: 1 ms

Giga-power Mode (GIGA)

Operate or reset: 16 ms

Sensitivity adjustment

Smart Tuning (2-point tuning, full autotuning, or 1-point tuning (1% to 99%)) or manual adjustment

Maximum connectable units

30 Units

30 Units (When connected to OMRON NJ-series Unit)

Functions

Operation mode

Contrast Mode: NO (Light-ON) or NC (Dark-ON)

Color Mode: NO (ON for match: ON for same color as registered color) or NC (ON for mismatch: ON for different color from registered color)

Timer

Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer (Counted by 0.1 s in a range of 0.1 to 0.5 ms, by 0.5 ms for 0.5 to 5 ms, and by 1 ms for 5 to 9999 ms. Default: 10 ms, Error: 0.1 ms)

Zero reset

Contrast Mode only

Negative values can be displayed. (Threshold level is shifted.)

Resetting settings

Select from initial reset (factory defaults), user reset (saved settings), or bank reset.

Eco mode

Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).

Bank switching

Select from banks 1 to 8.

Power tuning level

Set from 100 to 9,999. (The RGB maximum incident level at Smart Tuning is adjusted to the power tuning level.)

Output 2

-

Normal, error output, AND output, or OR output

-

External input

-

Select from input OFF, tuning, full-auto tuning, emission OFF, bank 1 and 2 switching, bank 1 through 8 switching, or zero reset.

-

Changing the displays

Threshold level and incident level, channel number and incident level, RGB display and incident level, or bank display and incident level
