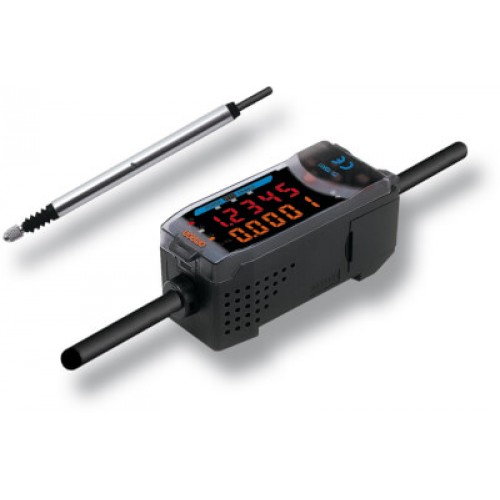

Микропроц. контактный измерит. датчик ZX-T

6 dia.

Short type

1 mm

0.1 µm

ZX-TDS01T

Standard type

4 mm

ZX-TDS04T

Low-load type

ZX-TDS04T-L

8 dia.

Standard type

10 mm

0.4 µm

ZX-TDS10T

Ultra-low-load type

ZX-TDS10T-L

Air lift type

ZX-TDS10T-V

Air lift/air push type

ZX-TDS10T-VL

Ball type (steel)

Female screw

M2.5x0.45

Measuring ordinary flat surfaces (standard
actuator supplied with the ZX-TDS series)

D5SN-TB1

Ball type
(carbide steel)

Female screw

M2.5x0.45

Measurements where abrasion resistance
is critical

Measured objects: Carbide (HR90) or lower.

D5SN-TB2

Ball type (ruby)

Female screw

M2.5x0.45

Measurements where abrasion resistance
is critical

Measured objects: Carbide (HR90) or higher.

D5SN-TB3

Needle type
(carbide steel)

Male screw

M2.5x0.45

Measuring the bottom of grooves and holes

D5SN-TN1

Flat
(carbide steel)

Male screw

M2.5x0.45

Measuring spherical objects

D5SN-TF1

Conversion adapter
(stainless steel)

Through-hole female screw

M2.5x0.45

Mounting D5SN-TN1/-TF1 or commercially
available actuators on ZX-TDS-series sensors

D5SN-TA

Measurement period

1 ms

Possible average count settings

1, 16, 32, 64, 128, 256, 512, or 1,024

Linear output

Current output: 4 to 20 mA/F.S., max. load resistance: 300 Ω

Voltage output: ±4 V (±5 V, 1 to 5 V

Judgement outputs
(3 outputs: HIGH/PASS/LOW)

NPN open-collector outputs, 30 VDC, 30 mA max.
Residual voltage: 1.2 V max.

PNP open-collector outputs, 30 VDC, 30 mA max.
Residual voltage: 2 V max.

Zero reset input, timing input, reset input, judgement output hold input

ON: Short-circuited with 0-V terminal or 1.5 V or less

OFF: Open (leakage current: 0.1 mA max.)

ON: Supply voltage short-circuited or supply voltage of 1.5 V or less

OFF: Open (leakage current: 0.1 mA max.)

Function

• Measurement value display
• present value/set value/output value display
• Display reverse
• ECO mode
• number of display digit changes
• Sample hold
• peak hold
• bottom hold, peak-to-peak hold
• Self-peak hold
• self-bottom hold
• zero reset
• Initial reset
• direct threshold value setting
• position teaching
• Hysteresis width setting
• timing inputs
• reset input
• Judgement output hold input
• monitor focus
• (A-B) calculations
  6
• (A+B) calculations (see note 4.)
• sensor disconnection detection
• Zero reset memory
• function lock
• non-measurement setting
• Clamp value setting
• scale inversion
• zero reset indicator
• Span adjustment
• warming-up display
• pressing force alarm

Indicators

Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red), 7-segment sub-digital
display (yellow), power ON (green), zero reset (green), enable (green)

Power supply voltage

12 to 24 VDC±10%, ripple (p-p): 10% max.

Current consumption

140 mA max. (with sensor connected), for 24-VDC power supply voltage: 140 mA max. (with sensor connected)

Ambient temperature

Operating and storage: 0 to 50°C (with no icing or condensation)

Temperature characteristic

0.03% F.S./°C

Connection method

Prewired (standard cable length: 2 m)

Weight (packed state)

Approx. 350 g

Materials

Case: PBT (polybutylene terephthalate), cover: Polycarbonate
