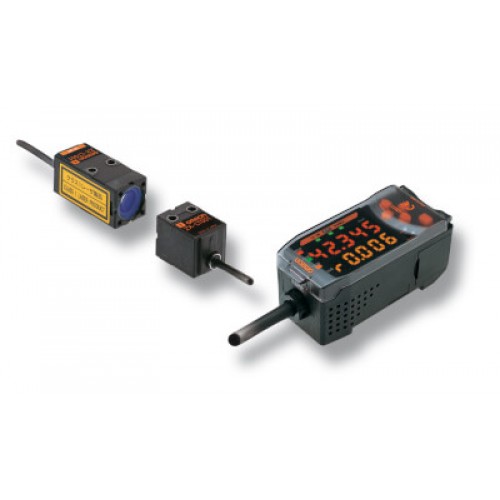

Микропроцессорный лазерный датчик ZX-L

Микропроцессорный лазерный датчик : ZX-L

Связаться с отделом продаж
+7 /727/ 349 3494

Описание

Характеристики

Микропроцессорный лазерный измерительный датчик,
отличающийся высокой точностью и быстродействием

Микропроцессорные датчики ZX-L работают по принципу "подключи и измеряй", обеспечивая эффективное решение задач, требующих высокого разрешения и быстродействия. Широкий диапазон сменных измерительных головок предоставляет большую гибкость при реализации систем с самыми высокими требованиями.

Легкие, миниатюрные головки датчиков легко подсоединяются и сменяются
Время реакции всего 150 мкс
Простая смена головки датчика
Модульная конструкция датчиков ZX обеспечивает большую гибкость применения.
Подключение до пяти датчиков для многоканального измерения

Основная информация

HTMLATR

Optical method	Beam shape	Sensing distance	Resolution 1	Size in mm (H × W × D)	Order code
Diffuse-reflective	Spot beam	40±10 mm	2 µm	39 × 33 × 17	ZX-LD40
		100±40 mm	16 µm		ZX-LD100
		300±200 mm	300 µm		ZX-LD300
	Line beam	40±10 mm	2 µm		ZX-LD40L
		100±40 mm	16 µm		ZX-LD100L
		300±200 mm	300 µm		ZX-LD300L
Regular reflection type	Spot beam	30±2 mm	0.25 µm	45 × 55 × 25	ZX-LD30V
Regular reflection type	Line beam	30±2 mm	0.25 µm	45 × 55 × 25	ZX-LD30VL

HTMLATR1

Item	ZX-LD40	ZX-LD100	ZX-LD300	ZX-LD30V	ZX-LD40L	ZX-LD100L	ZX-LD300L	ZX-LD30VL
Optical method	Diffuse reflection			Regular reflection	Diffuse reflection			Regular reflection
Light source (wave length)	Visible-light semiconductor laser (wavelength 650 nm, 1 mW or less, Class 2)
Measurement center distance	40 mm	100 mm	300 mm	30 mm	40 mm	100 mm	300 mm	30 mm
Measurement range	±10 mm	±40 mm	±200 mm	±2 mm	±10 mm	±40 mm	±200 mm	±2 mm
Beam shape	Spot				Line
Beam diameter 5	50 µm dia.	100 µm dia.	300 µm dia.	75 µm dia.	75 µmx2mm	150 µmx2 mm	450 µmx2 mm	100 µmx1.8 mm
Resolution 6	2 µm	16 µm	300 µm	0.25 µm	2 µm	16 µm	300 µm	0.25 µm
Linearity 7	±0.2% F.S. (entire range)	±0.2% F.S. (80 to 121 mm)	±2% F.S. (200 to 401 mm)	±0.2% F.S. (entire range)	±0.2% F.S. (32 to 49 mm)	±0.2% F.S. (80 to 121 mm)	±2% F.S. (200 to 401 mm)	±0.2% F.S. (entire range)
Temperature characteristic 8	±0.03% FS/°C (except for ZX-LD300 and ZX-LD300L, which are ±0.1% FS/°C.)
Ambient illumination	Incandescent lamp: 3,000 lx max. (on light receiving side)
Ambient temperature	Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 150 Hz, 0.7-mm double amplitude 80 min each in X, Y, and Z directions
Shock resistance (destruction)	300 m/s2 3 times each in six directions (up/down, left/right, forward/backward)
Protective structure	IEC 60529 IP50			IEC standard IP40	IEC 60529 IP50			IEC standard IP40
Connection method	Connector relay (standard cable length: 500 mm)
Weight (packed state)	Approx. 150 g			Approx. 250 g	Approx. 150 g			Approx. 250 g
Materials	Case: PBT (polybutylene terephthalate), Cover: Aluminum, lens: Glass			Case and cover: Aluminum, lens: Glass	Case: PBT (polybutylene terephthalate), Cover: Aluminum, lens: Glass			Case and cover: Aluminum, lens: Glass
Accessories	Instruction sheet, Laser warning label (English)

HTMLATR2

Item			ZX-LT001		ZX-LT005	ZX-LT010	ZX-LT030
Optical method			Through-beam
Light source (wave length)			Visible-light semiconductor laser (wavelength 650 nm, 1 mW or less, Class 1)
	Maximum output		0.2 mW max.		0.35 mW max.		0.2 mW max.
Measurement width			1 mm dia.	1 to 2.5 mm dia.	5 mm	10 mm	30 mm
Sensing distance			0 to 500 mm	500 to 2,000 mm	0 to 500 mm
Min. sensing object			8 mm dia. opaque object	8 to 50 µm opaque object	opaque: 0.05 mm dia.	opaque: 0.1 mm dia.	opaque: 0.3 mm dia.
Resolution 9			4 µm 10	-	4 µm 11		12 µm 12
Temperature characteristic			±0.2% FS/°C				±0.3% FS/°C
Ambient illumination			Incandescent lamp: 10,000 lx max. (on light-receiving side)
Ambient temperature			Operating: 0 to 50°C, storage: -25 to 70°C (with no icing or condensation)
Ambient humidity			Operating: 35% to 85% (with no condensation)
Protective structure			IEC 60529 IP40				IP 40
Connection method			Connector relay (standard cable length: 500 mm)
Weight (packed state)			Approx. 220 g				Approx. 450 g
Cable length			Extendable up to 10 m with special extension cable.
Materials		Case	Polyetherimide				Zinc die-cast
		Cover	Polycarbonate				Zinc die-cast
		Front filter	Glass
Tightening torque			0.3 Nm max.
Accessories			Instruction sheet, sensor head-amplifier connection cable
Accessories			Optical axis adjustment seal				Mounting Bracket
