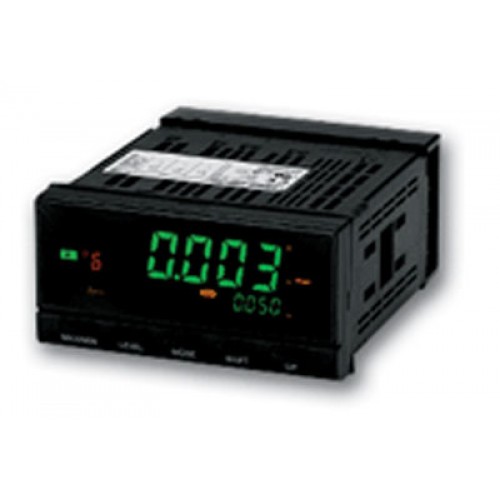

Type of indicator | Input sensor type and range | Supply voltage | Order code |
|---|
Process indicator
K3HB-X | AC current input, from 0.000 to 10.000 A, 0.0000 to 19.999 mA | 100 to 240 VAC | K3HB-XAA 100-240VAC | 24 VAC/VDC | K3HB-XAA 24VAC/VDC | DC current input, from ±199.99 mA, to 4.000 to 20.000 mA | 100 to 240 VAC | K3HB-XAD 100-240VAC | 24 VAC/VDC | K3HB-XAD 24VAC/VDC | AC voltage input, from 0.0 to 400.0 V to 0.0000 to 1.999 V | 100 to 240 VAC | K3HB-XVA 100-240VAC | DC voltage input, from ±199.99 V to 1.0000 to 5.0000 V | 100 to 240 VAC | K3HB-XVD 100-240VAC | 24 VAC/VDC | K3HB-XVD 24VAC/VDC | Temperature indicator
K3HB-H | Temperature input Pt100, thermocouple K, J, T, E, L, U, N, R, S, B, W | 100 to 240 VAC | K3HB-HTA 100-240VAC | 24 VAC/VDC | K3HB-HTA 24VAC/VDC | Weighing indicator
K3HB-V | Load cell input (DC low voltage input), 0.00 to 199.99 mV, 0.000 to 19.999 mV,
100.00 mV, 199.999 mV | 100 to 240 VAC | K3HB-VLC 100-240 VAC | 24 VAC/VDC | K3HB-VLC 24VAC/VDC | Linear sensor indicator
K3HB-S | DC process input, 0 to 5 V, 1 to 5 V, −5 to 5 V, −10 to 10 V, 0 to 20 mA, 4 to 20 mA | 24 VAC/VDC | K3HB-SSD AC/DC24 | 100 to 240 VAC | K3HB-SSD AC100-240 |
|
| HTMLATR1 |
Slot | Output | Sensor power supply | Communications | Applicable indicator types | Order code |
|---|
B | Relay | PASS: SPDT | 12 VDC ±10%, 80 mA | − | K3HB-X, -H, -S | K33-CPA | Linear current | DC0(4) - 20 mA | − | K3HB-X, -H, -S | K33-L1 A | Linear voltage | DC0(1) - 5 V, 0 to 10 V | − | K3HB-X, -H, -S | K33-L2A | − | − | − | K3HB-X, -H, -S | K33-A | − | − | RS-232C | K3HB-X, -H, -S | K33-FLK1 A | − | − | RS-485 | K3HB-X, -H, -S | K33-FLK3A | Relay | PASS: SPDT | 10 VDC ±5%, 100 mA | − | K3HB-V | K33-CPB | Linear current | DC0(4) - 20 mA | − | K3HB-V | K33-L1B | Linear voltage | DC0(1) - 5 V, 0 to 10 V | − | K3HB-V | K33-L2B | − | − | − | K3HB-V | K33-B | − | − | RS-232C | K3HB-V | K33-FLK1B | − | − | RS-485 | K3HB-V | K33-FLK3B |
|
| HTMLATR2 |
Slot | Output | Communications | Order code |
|---|
C | Relay | H/L: SPDT each | − | K34-C1 | HH/H/LL/L: SPST-NO each | − | K34-C2 | Transistor | NPN open collector: HH/H/PASS/L/LL | − | K34-T1 | PNP open collector: HH/H/PASS/L/LL | − | K34-T2 | − | − | DeviceNet | K34-DRT |
|
| HTMLATR3 |
Power supply voltage | 100 to 240 VAC (50/60 Hz), 24 VAC/VDC, DeviceNet power supply: 24 VDC | Allowable power supply voltage range | 85 to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC | Power consumption | 100 to 240 V: 18 VA max. (max. load), 24 VAC/DC: 11 VA/7 W max. (max. load) | Display method | Negative LCD (backlit LED) display 7-segment digital display
(character height: PV: 14.2 mm (green/red); SV: 4.9 mm (green)) | Ambient operating temperature | −10 to 55°C (with no icing or condensation) | Display range | −19,999 to 99,999 | Weight | Approx. 300 g (base unit only) | Degree of protection | Front-panel | Conforms to NEMA 4X for indoor use (equivalent to IP66) | Rear case | IP20 | Terminals | IP00 + finger protection (VDE0106/100) | Memory protection | EEPROM (non-volatile memory), number of rewrites: 100,000 | Event input ratings | Contact | ON: 1 kΩ max., OFF: 100 kΩ min. | No-contact | ON residual voltage: 2 V max., OFF leakage current: 0.1 mA max., load current: 4 mA max.
Maximum applied voltage: 30 VDC max. | Output ratings | Transistor output | Maximum load voltage | 24 VDC | Maximum load current | 50 mA | Leakage current | 100 µA max. | Contact output
(resistive load) | Rated load | 5 A at 250 VAC, 5 A at 30 VDC | Rated through current | 5 A | Mechanical life expectancy | 5,000,000 operations | Electrical life expectancy | 100,000 operations | Linear output | Allowable load impedance | 500 Ω max. (mA); 5 kΩ min. (V) | Resolution | Approx. 10,000 | Output error | ±0.5% FS | Size in mm (H×W×D) | 48×96×100 |
|
