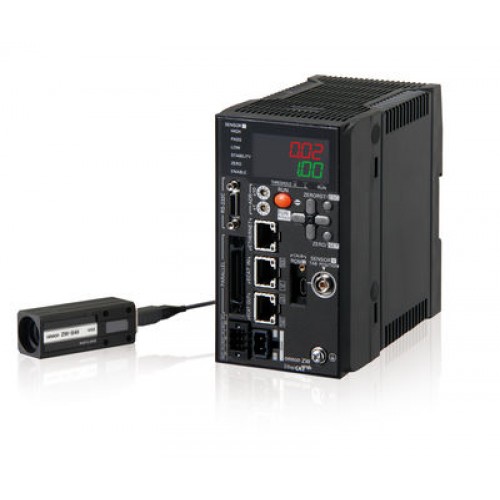

Измерительный датчик Серии ZW

Sensor Head - Controller Extension Fiber Cable (flexible cable) (Fiber Adapter ZW-XFC provided)

2 m

ZW-XF02R

5 m

ZW-XF05R

10 m

ZW-XF10R

20 m

ZW-XF20R

30 m

ZW-XF30R

Fiber Adapter (between Sensor Head pre-wired cable and Extension Fiber Cable)

-

ZW-XFC

Parallel cable for ZW-CE1 ☐ 32-pole

2 m

ZW-XCP2E

RS-232C Cable for personal computer

2 m

ZW-XRS2

RS-232C Cable for PLC/programmable terminal

2 m

ZW-XPT2

Standard type

Cable with connectors on both ends (RJ45/RJ45)

Wire gauge and number of pairs:

AWG27, 4-pair Cable

Cable Sheath material: LSZH

Cable color: Yellow

OMRON

0.3

XS6W-6LSZH8SS30CM-Y

0.5

XS6W-6LSZH8SS50CM-Y

1

XS6W-6LSZH8SS100CM-Y

2

XS6W-6LSZH8SS200CM-Y

3

XS6W-6LSZH8SS300CM-Y

5

XS6W-6LSZH8SS500CM-Y

Rugged type

Cable with connectors on both ends (RJ45/RJ45)

Wire gauge and number of pairs:

AWG22, 2-pair cable

OMRON

0.3

XS5W-T421-AMD-K

0.5

XS5W-T421-BMD-K

1

XS5W-T421-CMD-K

2

XS5W-T421-DMD-K

5

XS5W-T421-GMD-K

10

XS5W-T421-JMD-K

Rugged type

Cable with connectors on both ends (M12 Straight/RJ45)

Wire gauge and number of pairs:

AWG22, 2-pair cable

OMRON

0.3

XS5W-T421-AMC-K

0.5

XS5W-T421-BMC-K

1

XS5W-T421-CMC-K

2

XS5W-T421-DMC-K

5

XS5W-T421-GMC-K

10

XS5W-T421-JMC-K

Rugged type

Cable with connectors on both ends (M12 Right-angle/RJ45)

Wire gauge and number of pairs:

AWG22, 2-pair cable

OMRON

0.3

XS5W-T422-AMC-K

0.5

XS5W-T422-BMC-K

1

XS5W-T422-CMC-K

2

XS5W-T422-DMC-K

5

XS5W-T422-GMC-K

10

XS5W-T422-JMC-K

Measuring center distance

7 mm

20 mm

30 mm

40 mm

7 mm

20 mm

40 mm

Measuring range

± 0.3 mm

± 1 mm

± 3 mm

± 6 mm

± 0.3 mm

± 1 mm

± 6 mm

Static resolution

0.25 µm

0.25 µm

0.25 µm

0.25 µm

0.25 µm

0.25 µm

0.25 µm

Linearity

± 0.8 µm

± 1.2 µm

± 4.5 µm

± 7.0 µm

± 1.1 µm

± 1.6 µm

± 9.3 µm

Spot diameter

Near

20 µm dia.

45 µm dia.

70 µm dia.

90 µm dia.

20 µm dia.

45 µm dia.

90 µm dia.

Center

18 µm dia.

40 µm dia.

60 µm dia.

80 µm dia

18 µm dia.

40 µm dia.

80 µm dia

Far

20 µm dia.

45 µm dia.

70 µm dia.

90 µm dia

20 µm dia.

45 µm dia.

90 µm dia

Measuring cycle

500 µs to 10 ms

Operating ambient illumination

Illumination on object surface 10,000 lx or less: incandescent light

Ambient temperature range

Operating: 0 to 50 ° C, Storage: − 15 to 60 ° C

(with no icing or condensation)

Ambient humidity range

Operating and storage: 35% to 85%

(with no condensation)

Degree of protection

IP40 (IEC60529)

Vibration resistance (destructive)

10 to 150 Hz, 0.35 mm single amplitude, 80 min each in X, Y, and Z directions

Shock resistance (destructive)

150 m/s 2 3 times each in six directions (up/down, left/right, forward/backward)

Temperature characteristic

0.6 µm/ ° C
(0.45 μm/°C)

1.5 µm/ ° C
(1.0 μm/°C)

2.8 µm/ ° C
(2.0 μm/°C)

4.8 µm/ ° C
(3.8 μm/°C)

0.6 µm/ ° C
(0.45 μm/°C)

1.5 µm/ ° C
(1.0 μm/°C)

4.8 µm/ ° C
(3.8 μm/°C)

Materials

Case: aluminum die-cast

Fiber cable sheat: PVC

Calibration ROM: PC

Fiber cable length

0.3 m, 2 m (Flex-resistant cable)

Fiber cable minimum bending radius

20 mm

Insulation resistance (Calibration ROM)

Between case and all terminals: 20 M Ω (by 250 V megger)

Dielectric strength (Calibration ROM)

Between case and all terminals: 1,000 VAC, 50/60 Hz, 1 min

Weight

Approx. 105 g (Chassis, fiber cable total)

Accessories included with sensor head

Instruction sheet, Fixing screw (M2) for Calibration ROM, Precautions for correct use
